OMNIPV SOLAR WALL EXHAUST FAN
OMNIPV SOLAR WALL EXHAUST FAN
Couldn't load pickup availability
✦ Description
The Omni PV solar wall exhaust fan functions in several ways to keep your place cool and comfortable. Its design includes the following features:
-
It is solar-powered, so there is no running cost
-
It reduces the need for air-conditioning, reducing energy bills
-
It is easy to install and is compatible with tile, wood, metal, and dry walls. Square mounting frame on fan and mounting rack on solar panel are equipped for quick and flexible installation
-
It reduces humidity and promotes airflow, which can lower temperature by up to 30 ̊F
-
It reduces condensation build-up at your place
-
It has a brushless DC motor for quiet operation
-

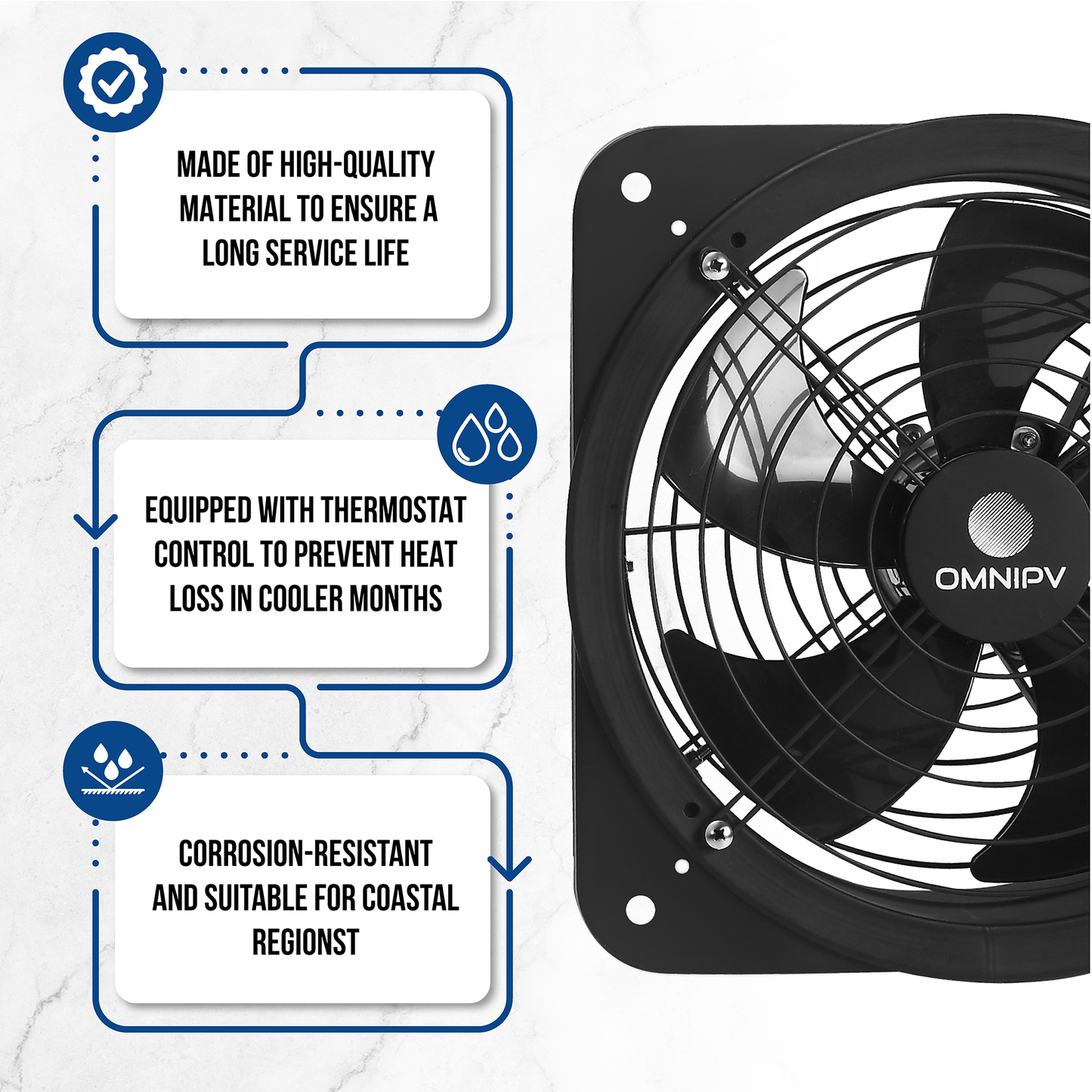

High-quality material is used for each part to ensure a long service life
-
In the cooler months, the thermostat control prevents heat loss and keeps the place warm
-
The fan is corrosion resistant and is suitable for coastal regions
✦ Specification
|
Model |
PVSFR-35 |
|
Fan |
300mm Balanced Blade (×5), with Low Resistance |
|
Capacity |
1200 CFM |
|
Motor |
35 Watts, 6-19 VDC, 1600 rpm Max, Brushless Motor with Double Shielded Ball Bearings |
|
Noise |
< 45 dBA Automatic |
|
Automatic Shut Off |
< 77 °F +/- 5% |
|
Fan Dimensions |
14 x 14 x 5 in |
|
Fan Weight |
6 lbs |
|
Construction |
Aluminum Top Cover, Aluminum Body, Steel Brackets and Stainless-Steel Fasteners |
|
Color |
Black Powder Coated |
|
Solar Panel Type |
Monocrystalline PV, Heavy Duty Frame, 3mm Tempered Glass |
|
Solar Panel Output |
35 Watts, 18 VDC |
|
Solar Panel Dimensions |
19.7 x 18.1 x 0.7 in |
|
Solar Panel Weight |
6 lbs |
|
Packing Dimensions |
20.9 x 22.4 x 9.4 in |
|
Packing Weight |
19.4 lbs |
|
Warranty |
2 Year Limited Warranty (10 Years on Solar Panel) |
