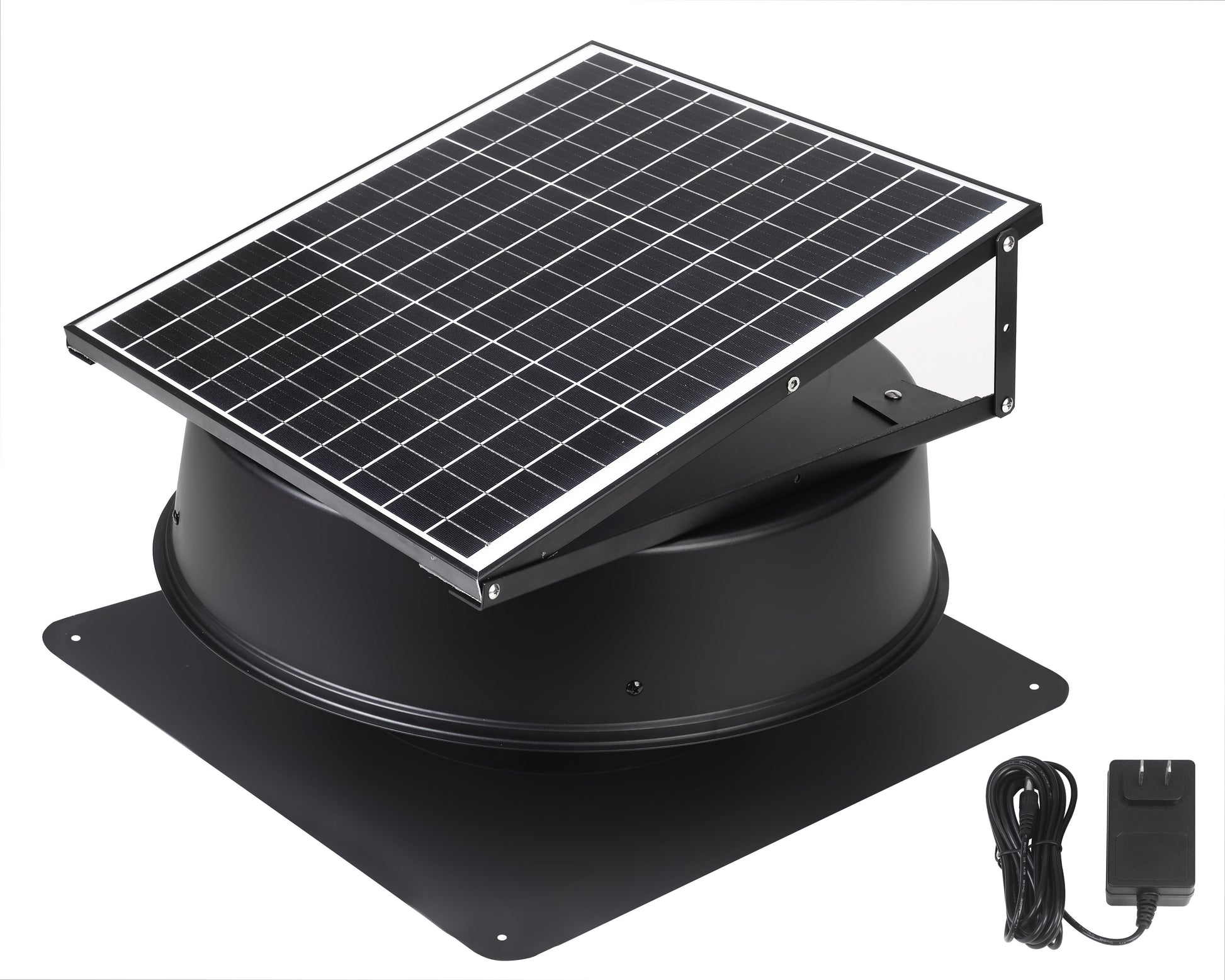

Solar Attic Fan
Solar Attic Fan
Couldn't load pickup availability
✦ Description
This solar roof exhaust fan functions in several ways to keep your place cool and comfortable. Its design includes the following features:
-

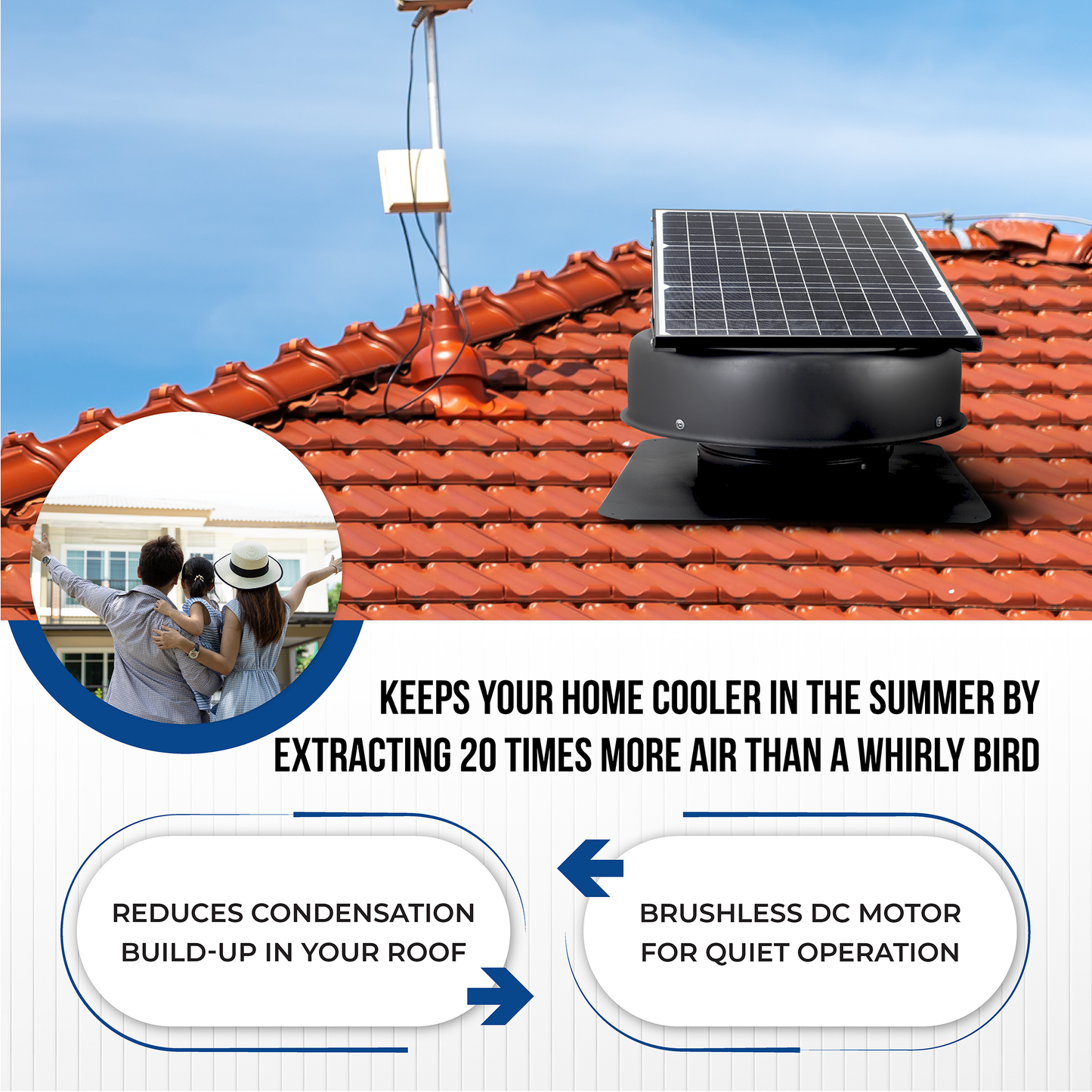

It keeps your home cooler in the summer by extracting 20 times more air than a Whirly Bird
-
It is solar-powered, so there is no running cost
-

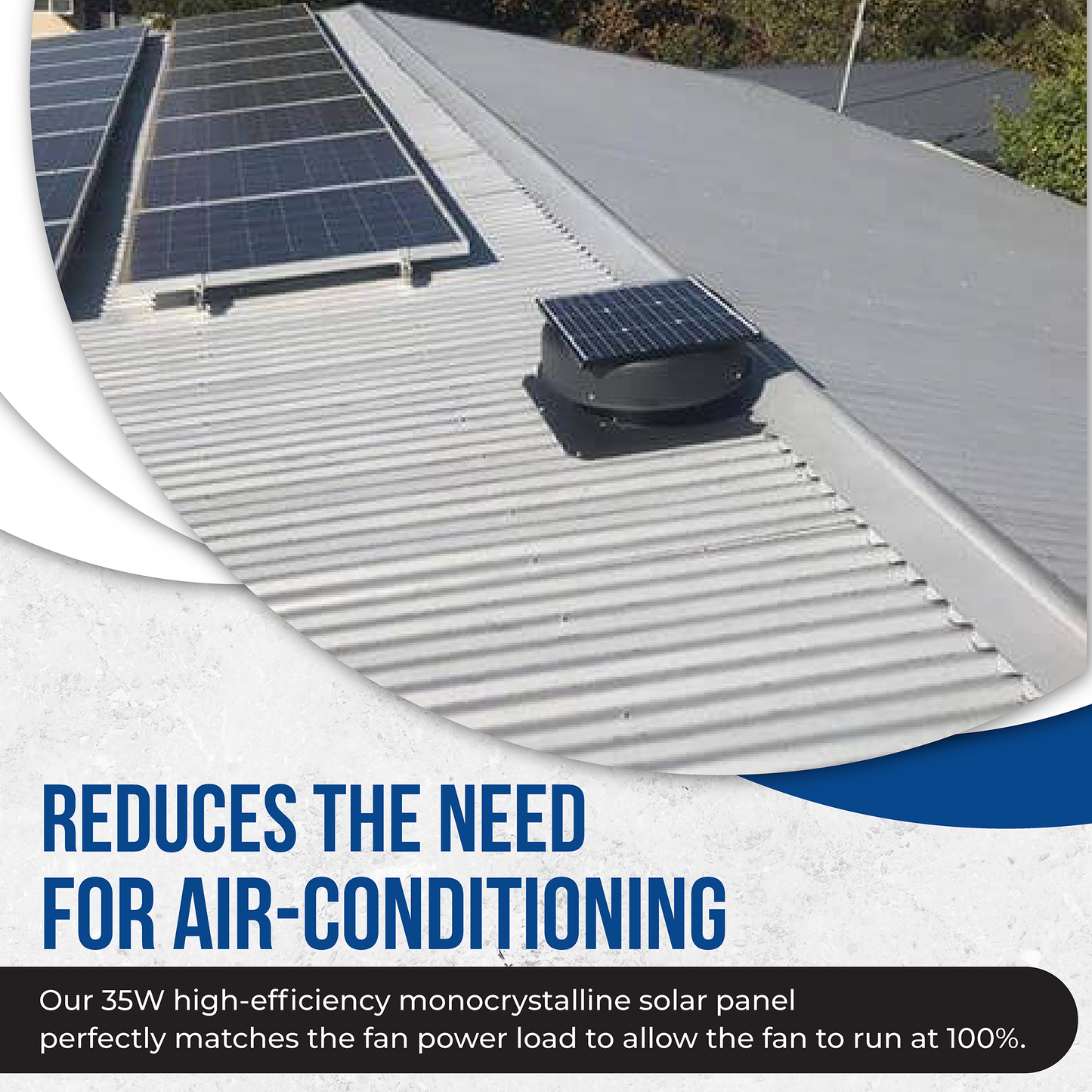

It reduces the need for air-conditioning, reducing energy bills
-
It is easy to install and is compatible with tile, Colorbond, metal, and flat roofs
-

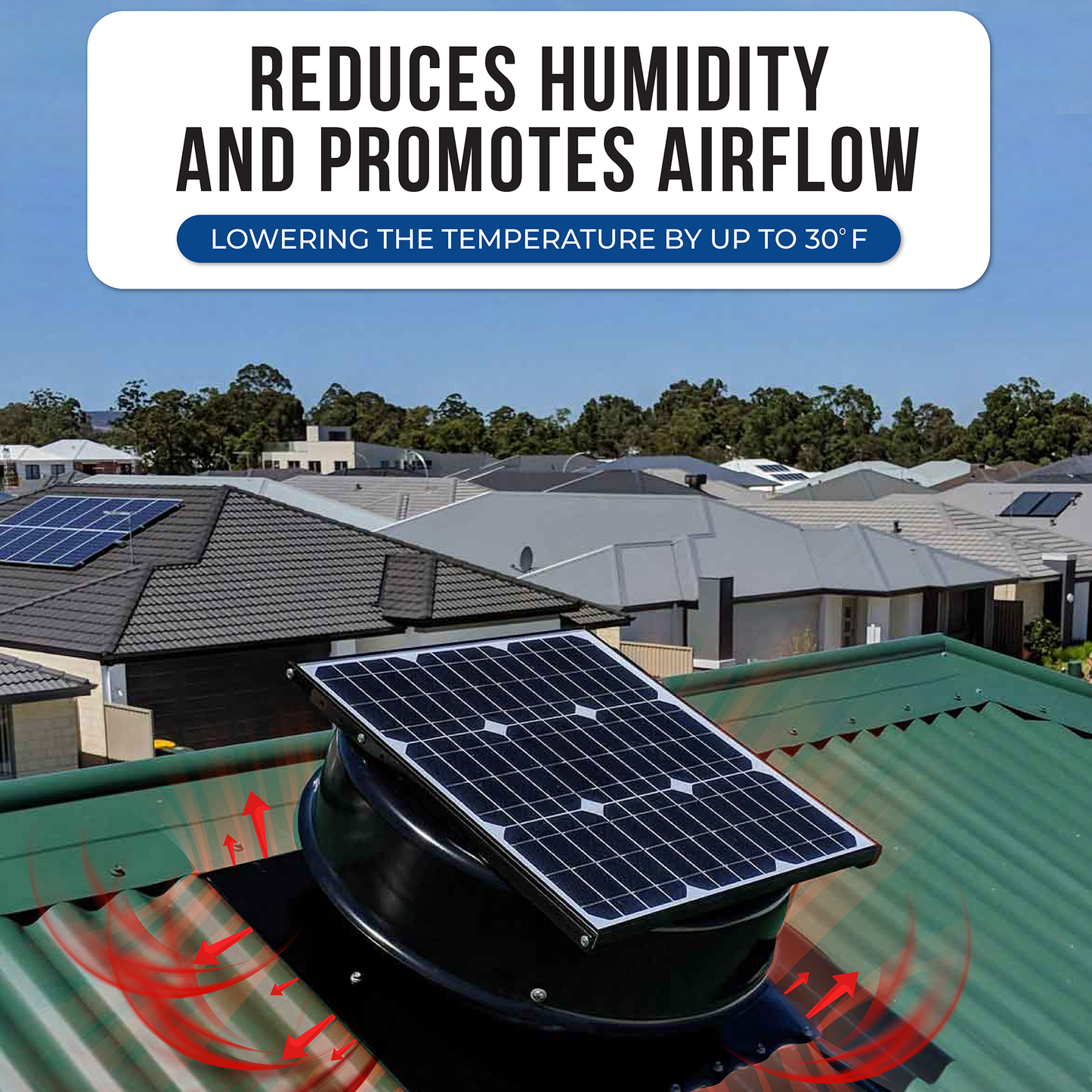

It reduces humidity and promotes airflow, which can lower temperature by up to 30 ̊F
-
It reduces condensation build-up in your roof
-

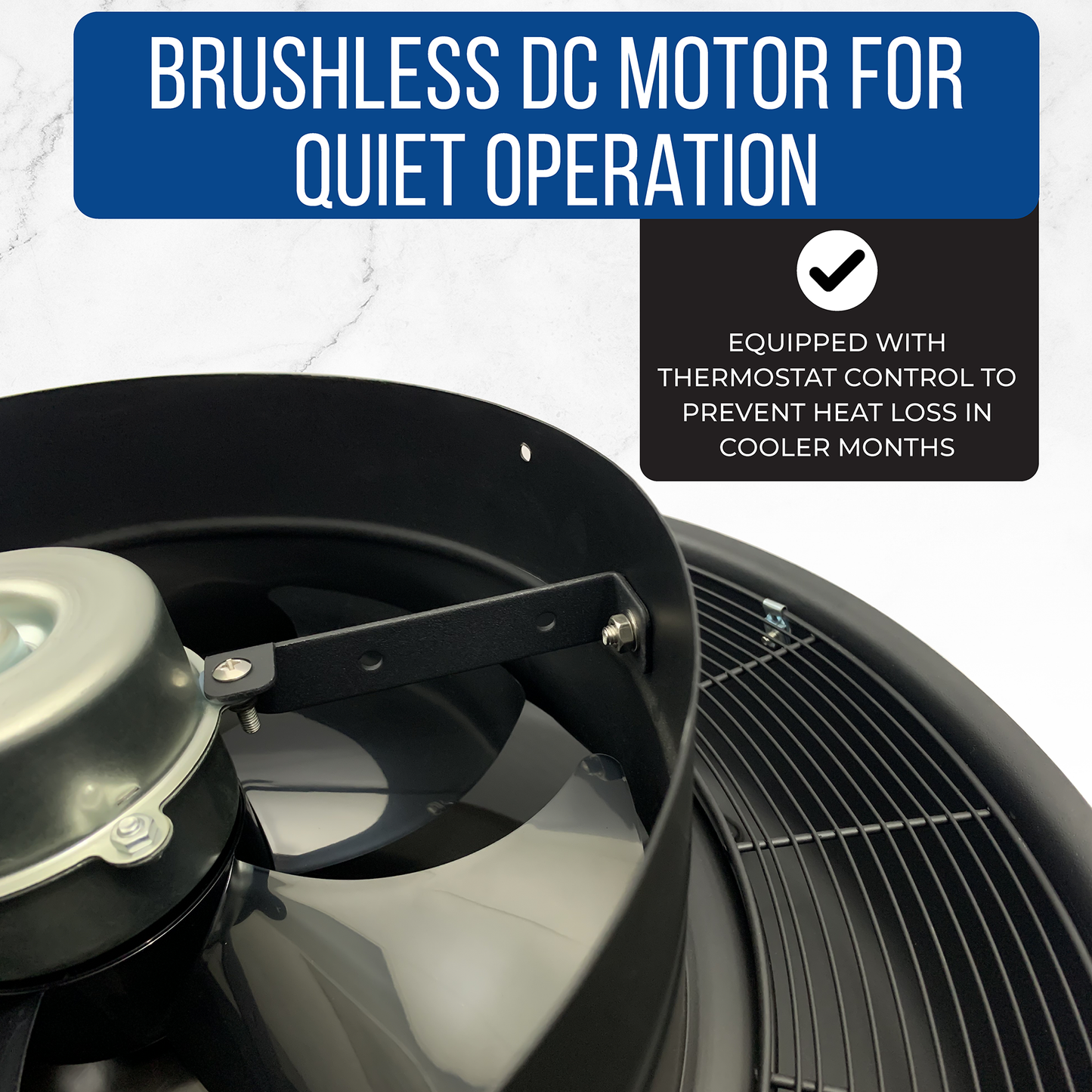

It has a brushless DC motor for quiet operation
-

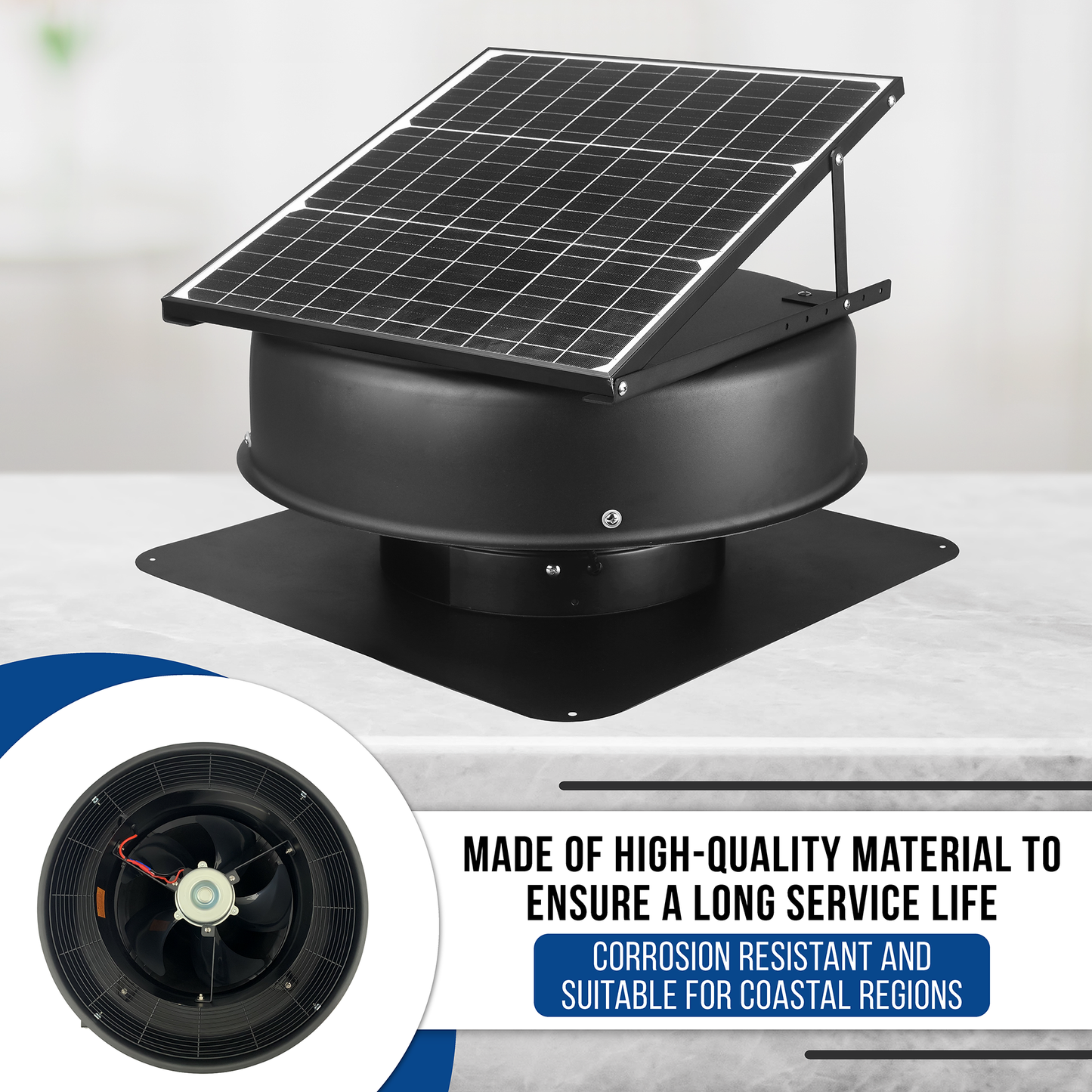

High-quality material is used for each part to ensure a long service life
-

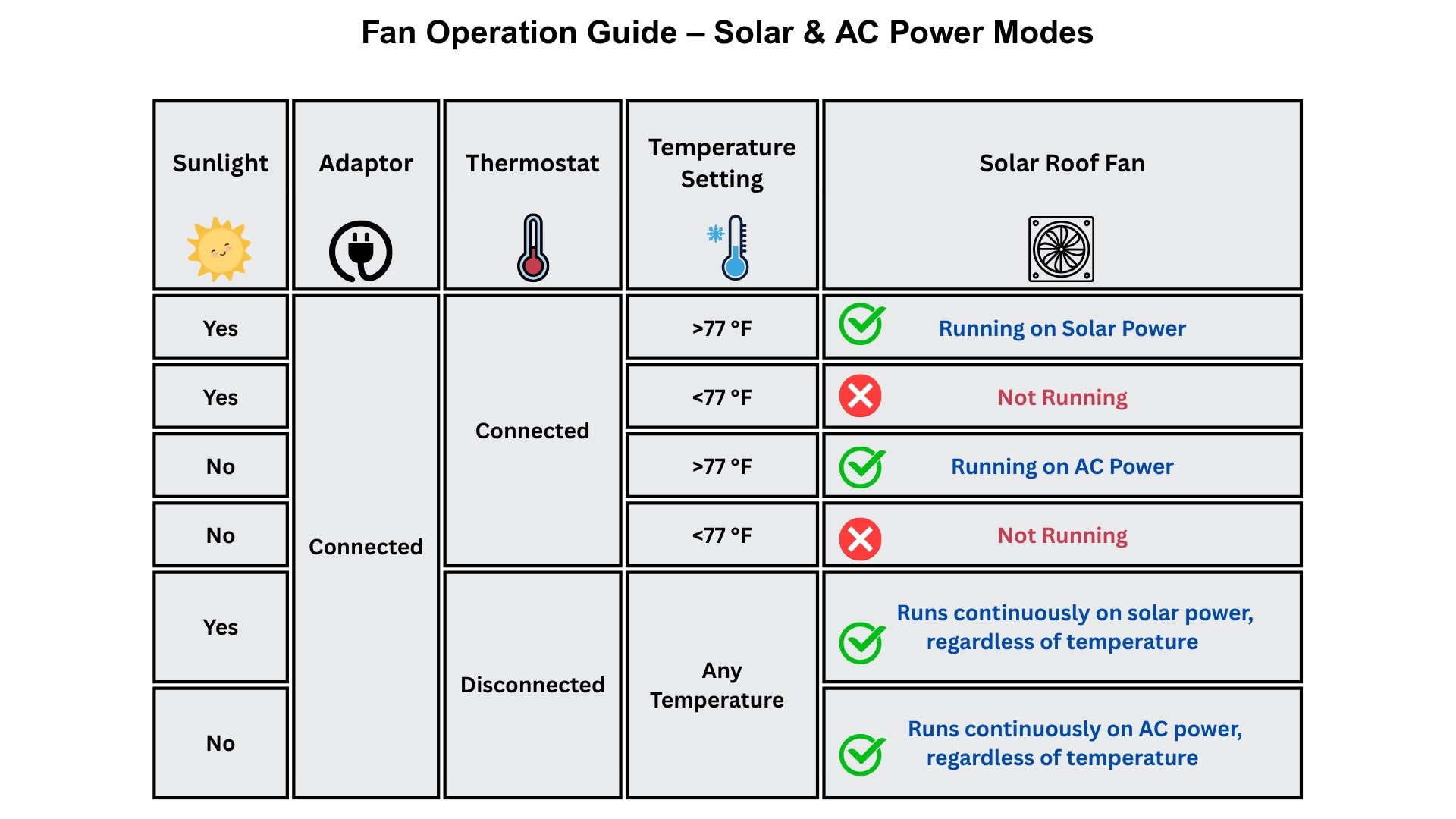

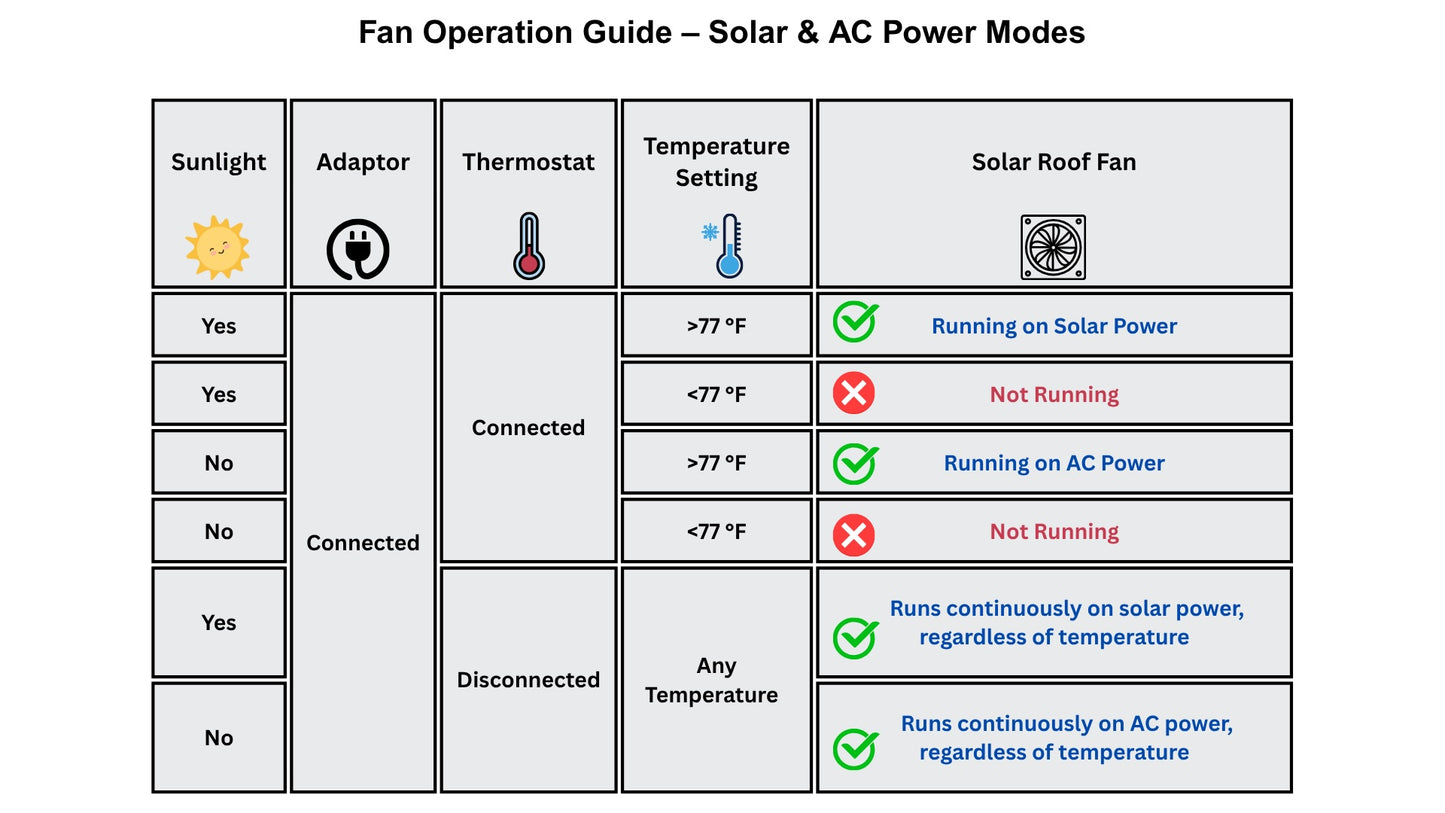

In the cooler months, the thermostat control prevents heat loss and keeps the place warm
-
The fan is corrosion resistant and is suitable for coastal regions
✦ Specification
|
Model |
PVSFR-35 |
|
Capacity |
1300 CFM |
|
Motor |
35 Watts, 6-19 VDC, 1600 rpm Max, Brushless Motor with Double Shielded Ball Bearings |
|
Solar Panel Type |
Monocrystalline PV, Heavy Duty Frame, 3mm Tempered Glass |
|
Solar Panel Output |
35 Watts, 18 VDC |
|
Fan |
300mm Balanced Blade (×5), with Low Resistance |
|
Noise |
< 45 dBA Automatic |
|
Automatic Shut Off |
< 77 °F +/- 5% |
|
Product Dimensions |
22.2 x 22.2 x 10.2 in |
|
Flashing Dimensions |
22.2 x 22.2 in |
|
Product Weight |
17.2 lbs |
|
Construction |
Aluminium Top Cover, Aluminium Body, Steel Brackets and Stainless-Steel Fasteners |
|
Color |
Black Powder Coated |
|
Packing Dimensions |
22.8 x 22.4 x 11.1 in |
|
Packing Weight |
21.2 lbs |
|
Warranty |
2 Year Limited Warranty (10 Years on Solar Panel) |
